LED Effect Wheel Projector Saver Pack

LED Pinwheel projector with 5 effect wheels. This projector shines a rotating theme onto the wall based on the effect wheel that you have chosen. Variable speed control for a faster or slower rotation of the effect wheel.  Size : D330 x W210 x H220mm.

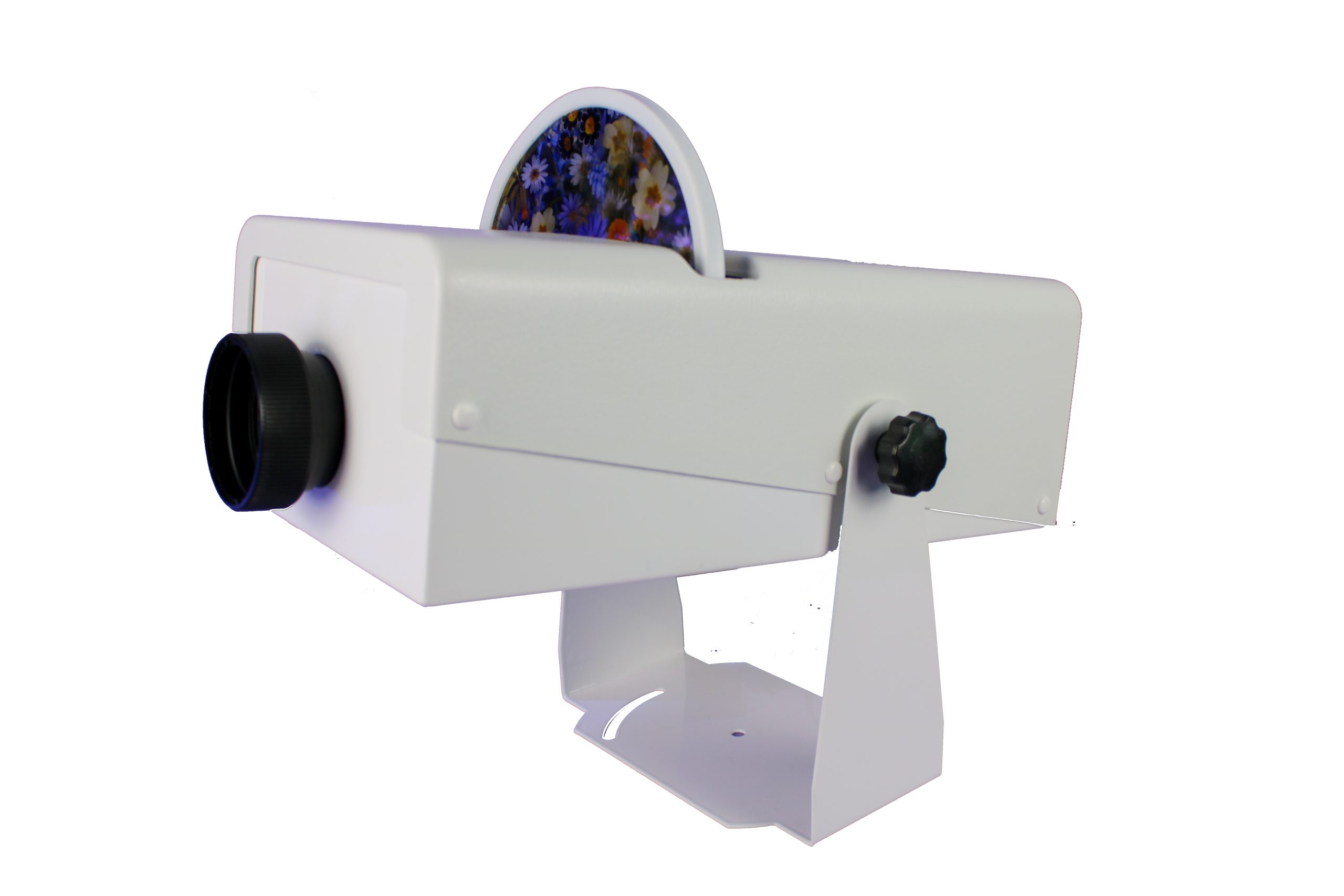

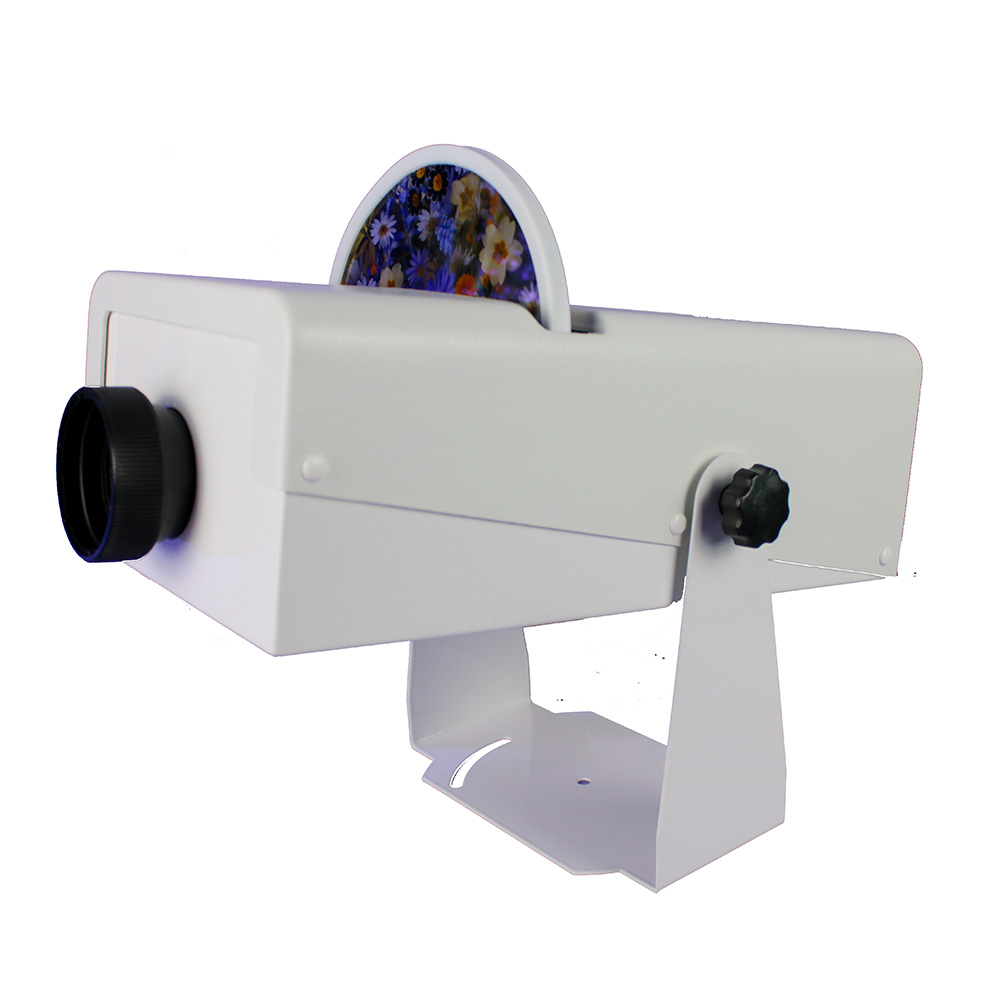

Introducing the Causeway Sensor LED Pinwheel Projector

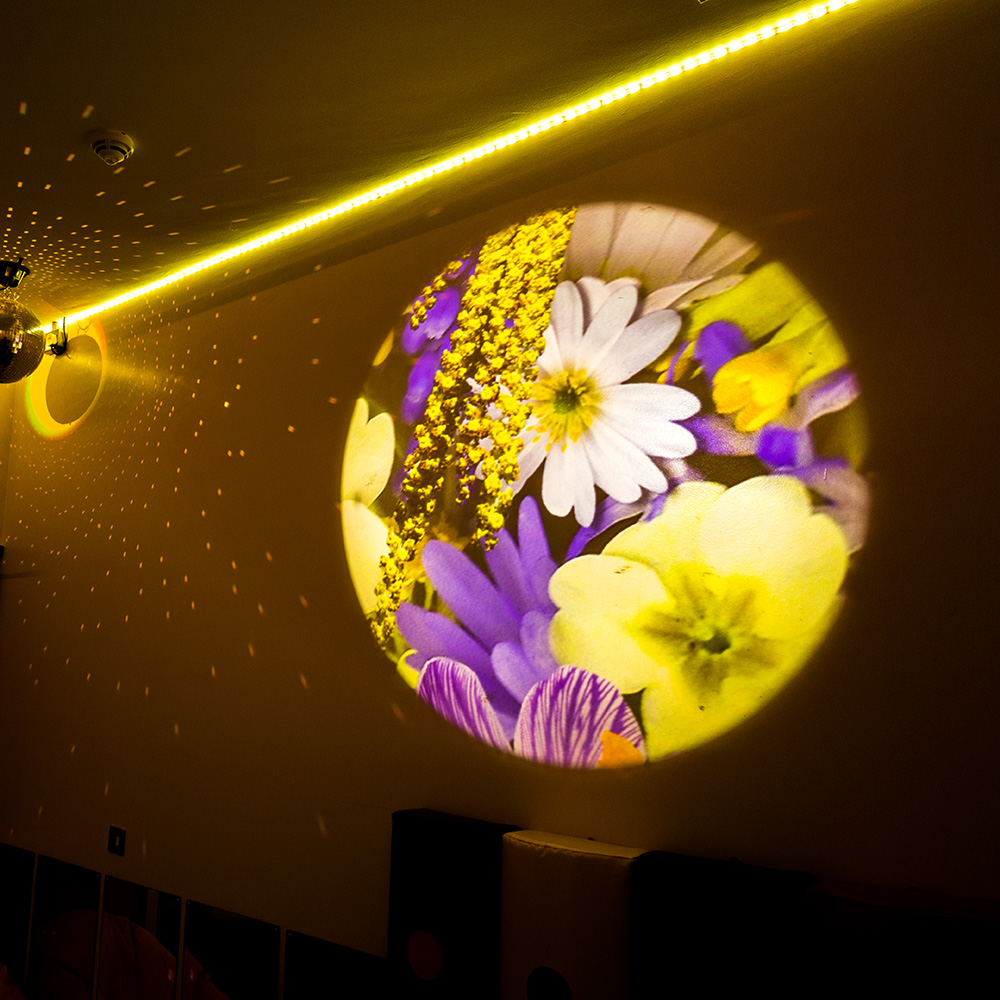

This LED pinwheel projector shines a rotating theme onto the wall based on the effect wheel that you have chosen. This saver pack option includes 5 effect wheels.  They are held on by a magnetic clip and can easily be changed to match the required theme. The LED projectory is energy-efficient, cool running, quiet and virtually maintenance free. The Integral 40W LED lamp provides bright, white light and typically lasts 100,000 hours. Low power consumption.

Compatible with accessories such as the Clip-on Prism. Can be used on a table top (under supervision). Directly connect your own switches to stop/start the rotated image. 85mm lens. 1200 lumens. Weight 3KG. Size : D330 x W210 x H220mm

Installation

To begin, carefully remove the contents from its packaging. The LED Effect Wheel Projector is packaged with its stand folded. You many need to loosen the black plastic knobs on the side to aid movement. the can be tightened/ loosened to angle the projector as needed.

The power adapter provided is supplied with pins for multiple regions. Make sure the appropiate pins are connected to the power adapter.  Align the selected pins with the slots in the power adapter and rotate clockwise unitl they click into place. The pins can be removed by pressing the black tab and rotating in the opposite direction.

The LED Effect Wheel Projector is powered by connecting the power adapter cable into the 12V socket on the back.

Operation

On the back of the projector you will find the controls. Use the switch to power the unit On/Off. The 4 buttons to the left will change the speed of the motor, measured in revolutions per minute.  A green light will indicate the current speed selected. A second press of the currently selected speed button will change the direction of rotation.

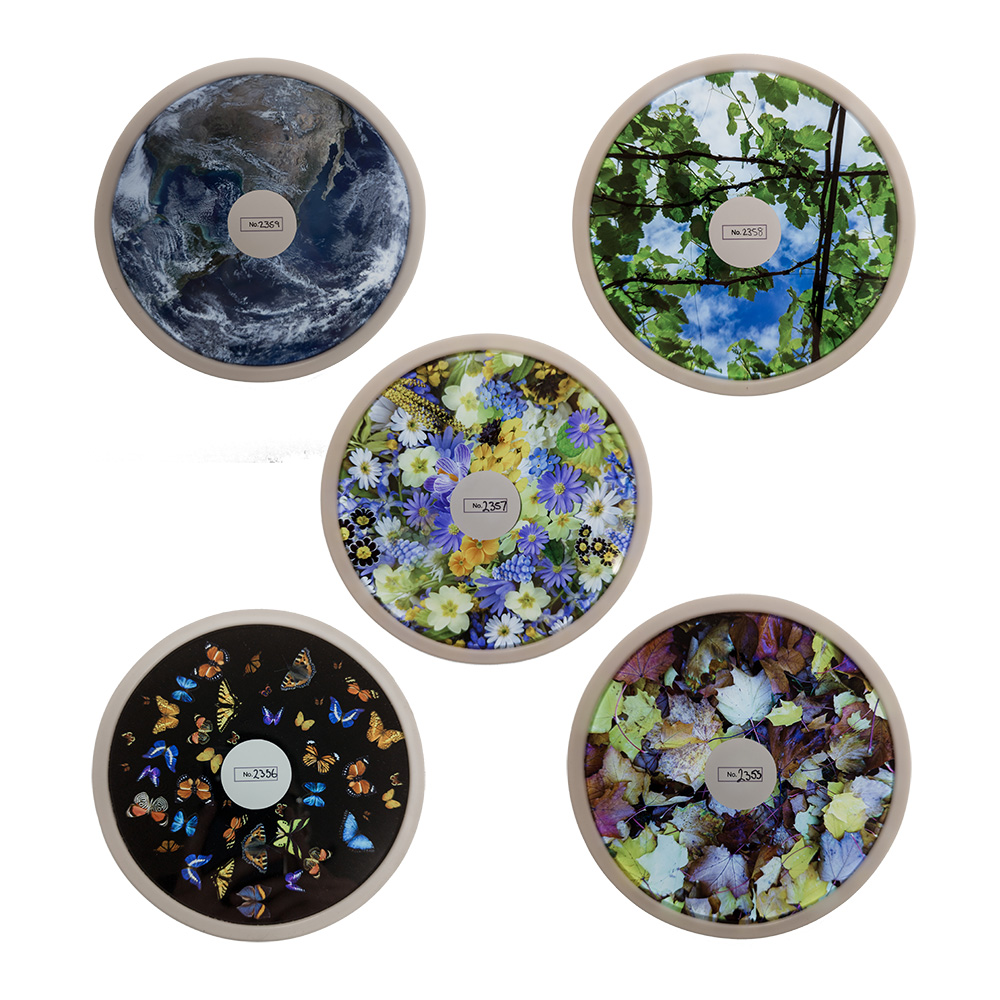

A projector wheel is attached by placing it onto the magnetic connector on the motor.  The wheel adapter kit included allows a range of projector wheels to be compatible with this projector. You can adjust the focus of the projected image by twisting the lens clockwise or anticlockwise. The amount of adjustment needed depends on the distance that the projector is placed from the surface of projection.

Package Contents

• LED Effect Wheel Projector
• Power Adapter
• Power Adapter Pins
• Wheel Adapter Kit
• 5 Effect Wheels
